Automatic Swing Gates

Automatic Swing Gates
Introduction

Sliding Gates With Track

Chordia Automatic Gates are made for modern designs and countless combinations meeting the needs of modern architectural buildings. Gates made of Steel, aluminum & Stainless Steel in vertical structure combined with architectural elements, which renders them a true jewel placed at your entrance. High standard aesthetics and simple lines forming a modern construction.

It’s always good to make a stylish impression right from the start. In this case, as soon as guests and clients drive up to your property. Chordia Automatic gates represent a stylish nod to your personally high standards with their appealing design, modern technology, and first-class security features. Quality, beauty and comfort.

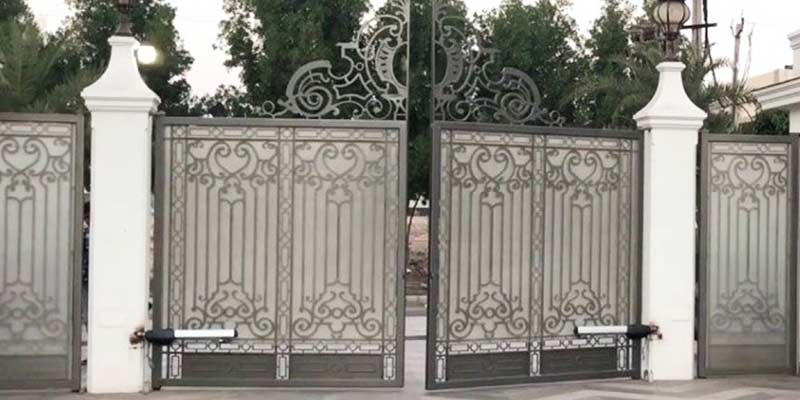

Single or Double-leaf gate is a solid structure mounted to steel or brick posts by means of assembly plates the leaves operate on hinges installed in the axis of the gate depending on the design, the gate may be filled with steel sections or bars symmetrically divided leaves; passive leaf is equipped with a vertical bolt.

An ingenious idea that incorporates a Bi Folding gates, ideal for spaces that are restricted or tight. To achieve the maximum clear opening.

Options Available

  • Access Control Long Range & Short Range.
  • Operation indicative LED Flashing Lamp.
  • Safety edge.
  • photocells
  • High speed gate drive.
  • Inductive loop systems.
  • Digital Loop System.
  • Matching Infills and Cladding.
  • Other Options on request.

Product Highlights

  • Modern designs and countless combinations meeting the needs of modern architectural buildings.
  • The new generation of gates providing a solid, modern and discreet solution. Gates that are easy to install and do not need maintenance.
  • High standard aesthetics and simple lines forming a modern construction. Gates that may be combined with various materials such as perforated sheets, polycarbonate sheets and various architectural infill’s and elements.
  • Our goal is to continually develop Gates that can be installed in the most diverse exteriors, ranging from very modern and contemporary to more classical and even rustic.
Model Code Application Drive Type Motor Type Mains Power Supply Motor Power Supply Maximum Leaf Lenght For Sliding Gates (Mtrs) Max Weight (kgs) Cycles Per Day Max Speed
BE20/200 High Intensity Economical Irreversible Brushless Digital 230 V 24 V 2.2 Mtrs 220 kgs 1000 1.66 Cm /Sec
BE20/200/HS High End Irreversible Brushless High Speed 230 V 24 V 12 Mtrs 200 kgs 800 3 Cm /Sec
BR20/300 High Intensity Irreversible Brushless Digital 230 V 24 V - 36 V 2.5 Mtrs 280 kgs 1300 1.66 Cm /Sec
BR20/500 High Intensity Irreversible Brushless Digital 230 V 24 V - 36 V 3.5 Mtrs 280 kgs 1000 1.66 Cm /Sec
SMARTY 5 High End Irreversible Brushless Digital 230 V 36 V 5 Mtrs 500 kgs 1000 1.6 Cm /Sec
SMARTY 5R High End Reversible Brushless Digital 230 V 36 V 5 Mtrs 500 kgs 1000 1.6 Cm /Sec
SMARTY 7 High End Irreversible Brushless Digital 230 V 36 V 7 Mtrs 700 kgs 1000 1.6 Cm /Sec
SMARTY 7R High End Reversible Brushless Digital 230 V 36 V 7 Mtrs 700 kgs 1000 1.6 Cm /Sec
SMARTY 4/HS High End Irreversible Brushless High Speed 230 V 36 V 4 Mtrs 400 kgs 1000 3 Cm /Sec
BR21/351 High End Irreversible Brushless Digital 230 V 24 V - 36 V 4.5 Mtrs 500 kgs 1000 1.66 Cm /Sec
BH23/282 High End Irreversible Brushless Digital 230 V 24 V - 36 V 2.8 Mtrs 300 kgs 1900 3 Cm /Sec
R21/351 Economical Irreversible Traditional 230 V 230 V 3.5 Mtrs 500 kgs 20 1.66 Cm /Sec
Technology Descriptions
Safety of Automation Due to encoder management it allows a precise and safe control of slowdowns when opening and closing.
Practicality of Automation Automatically learns via the learning function of the control unit. Receiving radio with practical coupling
Installation of Automation Quick to install and start due to its simple functions and its height and depth adjustments.
Strength of Automation Base Strong due to its sturdy aluminium base treated with anti-corrosive paint and a reliable motor, mounted in dedicated housings and bearings.
Emergency
  • Equipped with a manual release lever with a safe and easy lock.
  • Possibility of integrating battery with the automation system.
Other Possibilities & Practicalities of Automation
  • Automatic closing after a selected pause time.
  • Automatic Gate closing after mains power outage.
  • Selection of step mode/ condominium function as per your requirement.
  • Option of partial or pedestrian opening in gate automation system.
  • Adjustable torque and speed.
  • Soft Start and Soft Closing.
  • Programmable Sensing edge and obstacle detection system via control unit.
  • Integration with Home Automation System and building management system.
Accessories
  • Remote Control.
  • Access Control.
  • Photocells (Safety Sensors).
  • Flashing Lamp
  • Safety Edge.
  • Inductive Loop Detection System.
  • Key Switch.
  • Push Button.
  • Mobile Operation through GSM Controller.
Approved standards
  • Directive 89/336/eec (emc directive).
  • Directive 73/23/eec (low voltage directive).
  • En 61000-6-3
  • En 61000-6-2
  • En 60335-1
  • En 60335-2-103
  • En 12453
  • En 12455
